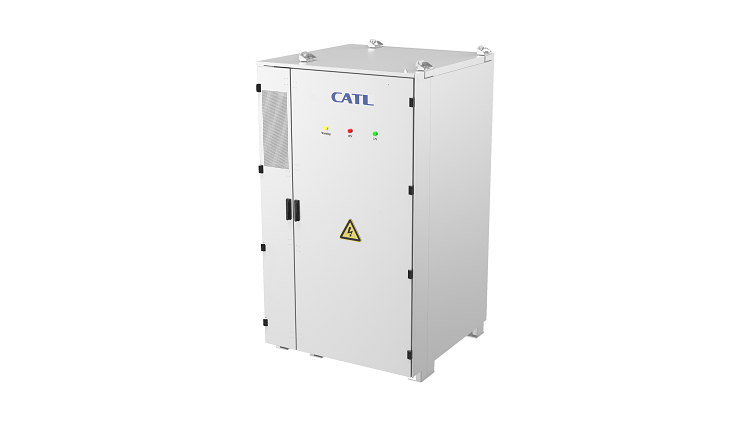

EnerOne
Outdoor cabinet
CATL manufacturer image372.7 kWh
Modular storage with 280 Ah LFP cells and liquid cooling.
- Cabinet footprint
- 1.69 m²
- Ambient range
- −30 to +55 °C
CATL energy storage systems
From modular cabinets to high-capacity systems. Explore CATL’s BESS families and work with Sitrax to find the configuration for your project.
CATL Service Center in the Dominican Republic, operated by Sitrax.Contact the center →
BESS system comparison
Compare nominal energy and system format across the portfolio. Confirm local availability and the specific version with Sitrax.
| Model | Nominal energy | Format |
|---|---|---|
| EnerOne | 372.7 kWh | Outdoor cabinet |
| EnerOne Plus | 379.4 / 407.3 kWh | Outdoor cabinet |
| EnerC | 3.72 MWh | Container system |
| EnerC Plus | 3.72 / 4.07 MWh | Container system |
| TENER | 6.25 MWh | 20-foot container |
| TENER Flex | Modular configuration | Rack system |
| TENER Stack | Up to 9 MWh | Stacked system |
kWh and MWh describe stored energy, not output power. Power in kW or MW depends on the battery system, PCS and final design.

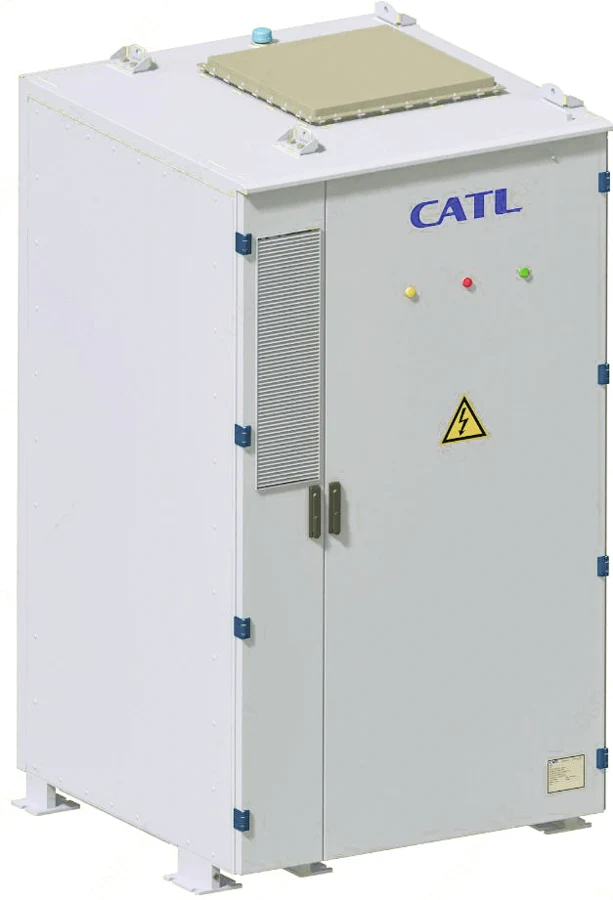

CATL manufacturer imageEnerOne Plus
Outdoor cabinet
CATL manufacturer image379.4 / 407.3 kWh
A modular evolution of EnerOne for liquid-cooled storage systems.
- Cells
- 285 / 306 Ah
- Rated voltage
- 1,331.2 V

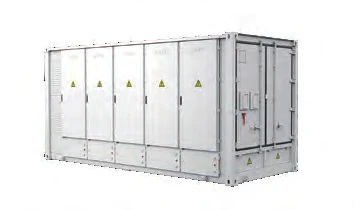

EnerC
Container system
CATL manufacturer image3.72 MWh
Liquid-cooled LFP batteries in a high-capacity storage solution.
- Protection
- IP55
- Rated voltage
- 1,331.2 V

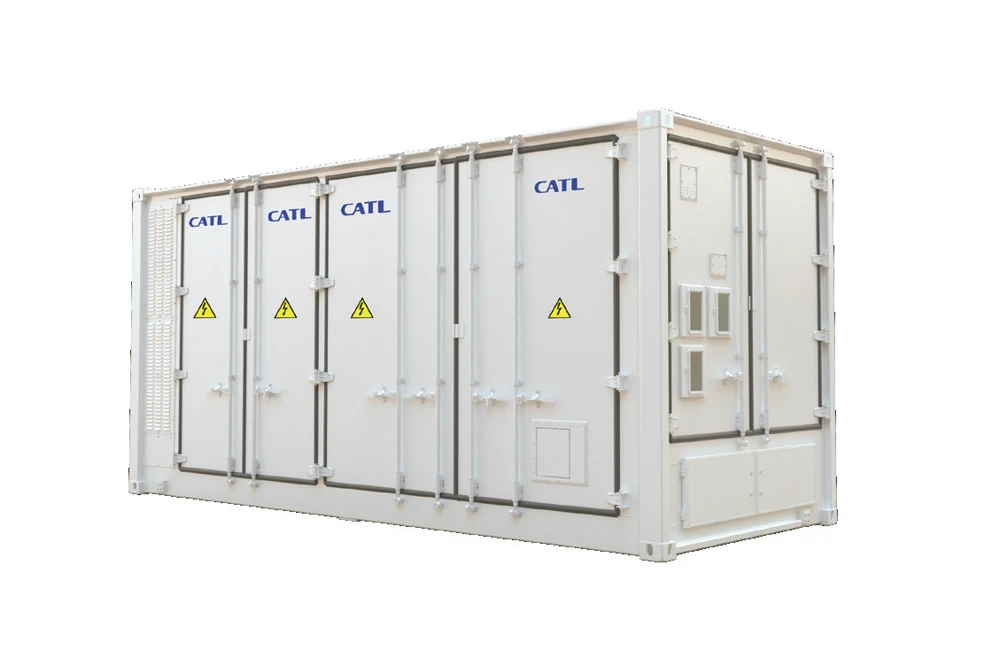

EnerC Plus
Container system
CATL manufacturer image3.72 / 4.07 MWh
A non-walk-in design supporting back-to-back installation. Capacity depends on the cell version.
- Cell versions
- 280 / 306 Ah
- Protection
- IP55

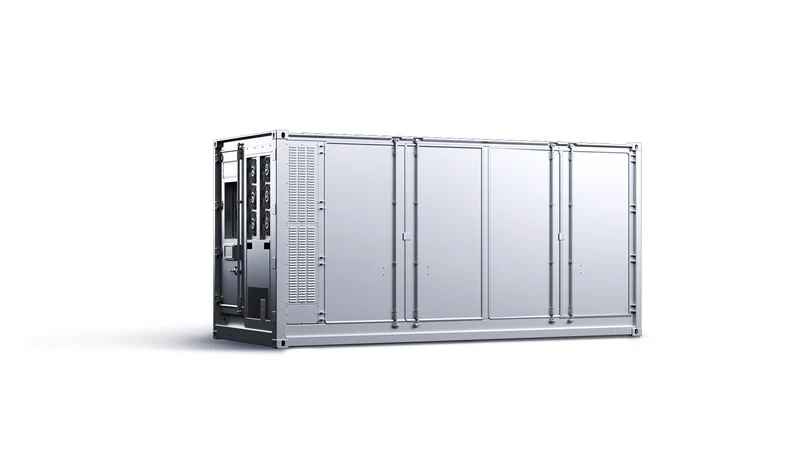

TENER
20-foot container
CATL manufacturer image6.25 MWh
A high-density LFP system for large-scale energy storage.
- Format
- 20 ft / TEU
- Cell technology
- LFP

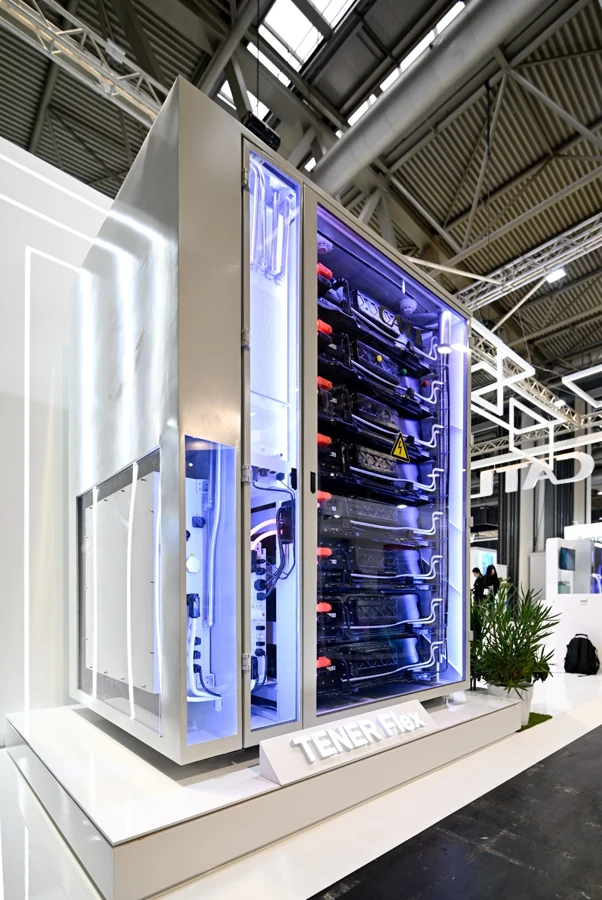

TENER Flex
Rack system
CATL manufacturer imageModular configuration
Independent racks, skid mounting and back-to-back layouts. Supports string and centralised PCS.
- PCS range
- 600–1,500 V
- Protection
- IP56

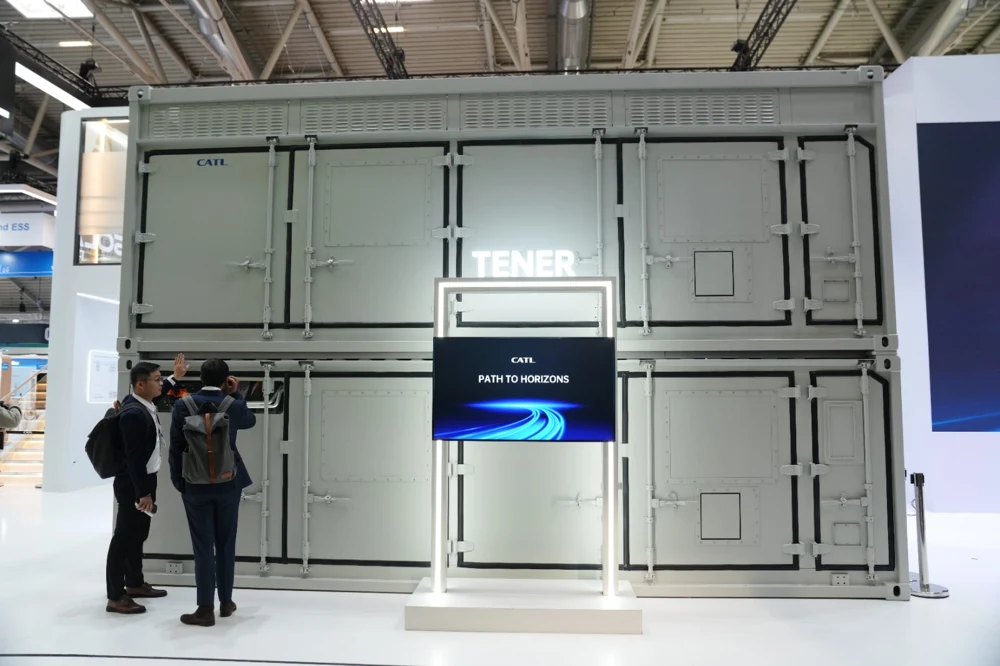

TENER Stack
Stacked system
CATL manufacturer imageUp to 9 MWh
Separable units for transport and high-capacity deployment. Supports string and centralised PCS.
- Cell technology
- LFP
- Design
- Two stacked units
Data from CATL publications, with the reference year shown under each model. Capacities refer to documented versions and do not represent an inventory offer. Request the current datasheet, usable energy, power rating and warranty terms for your configuration.
System design and integration
A BESS brings together batteries, management, conversion and control. Integration determines how it serves your operation.
Explore Sineng PCSBatteries, PCS and energy management
Batteries store energy. The BMS monitors their condition. The PCS converts between DC and AC; the EMS coordinates charging and discharging. Compatibility is validated for each project.
How long can it supply energy?
Duration depends on usable energy and load, as well as operating reserves, losses, temperature and power limits. Backup during outages requires a design with islanding capability and appropriate protection.
What does zero degradation mean for TENER?
CATL describes TENER technology as delivering zero power and capacity degradation over the first five years. This is a manufacturer claim; applicability, operating conditions and warranty terms must be confirmed for the contracted version.
What does Sitrax need for sizing?
Location, consumption profile, peak demand, existing or planned solar generation, available space and your objective: demand management, renewable integration or critical-load backup.
CATL Service Center
in the Dominican Republic.
Operated by Sitrax.
Your local point of contact for service inquiries about CATL systems. Contact Sitrax to coordinate assistance and confirm the scope applicable to your equipment.
To start an inquiry, share the model, serial number, location and a description of what you need.
